Simulation & Tool Design
WE ARE USING : STAMP - PACK FOR SIMULATION

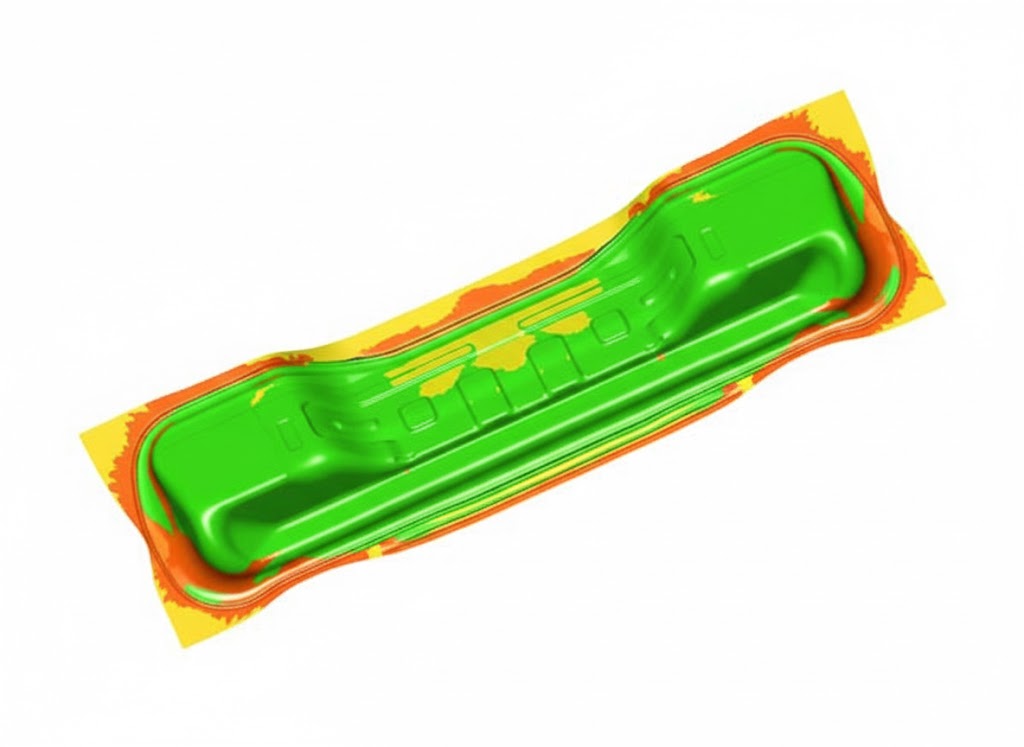

OP 10 - FLD ANALYSIS - DRAW
FLD (strain) - Zones by quality - Membrane
Strong wrinkling trend (7)
Wrinkling trend (6)
Insufficient stretching (5)
Safe (4)
Marginal zone (3)

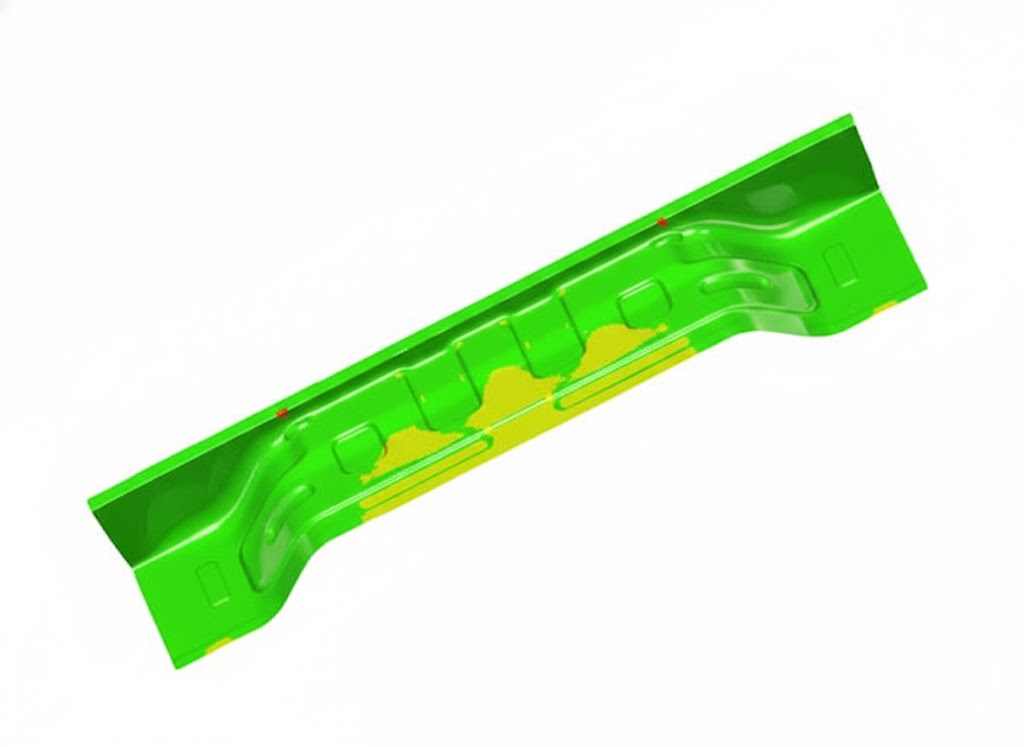

OP 30 - FLD ANALYSIS - RESTRIKE
FLD (strain) - Zones by quality - Membrane
Strong wrinkling trend (7)
Wrinkling trend (6)
Insufficient stretching (5)
Safe (4)
Marginal zone (3)
